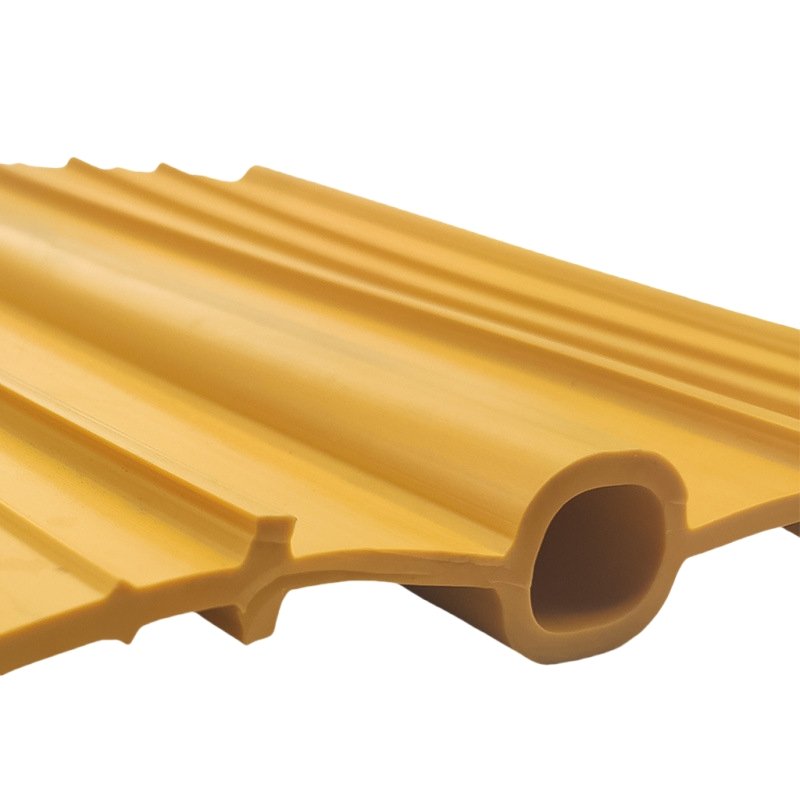

PVC Waterstop Belt for Construction Concrete Cold Joint Waterproofing

PENNSTOP series are flexible,colorful, special shape based on premium grade polyvinyl chloride (PVC) resin/ rubber and other mixtures, formed through the unique design and advanced extruding produce technology, takes excellent durability and corrosion resistance performance, widely used in various joints of construction structures for anti - seepage and anti leakage.
Model Color Width Length Thickness
PENNSTOP WP Blue/Yellow or Customized 10cm-60cm 15m 4mm
· High tensile strength & Superior elongation capability
· Excellent inherent elasticity and impermeability
· Extremely alkalis, chlorinated water and other waterborne chemicals resistant
· Capable to taking care of any deflection or displacement arising caused by temperature changing or differential settlement of foundation.
· Supplied in coils for easy handling with high flexibility.
· Easy to install by tethering the outer flanges of the PVC waterstop to adjacent a reinforcing bars.
1. Basement: For the construction joints between the walls, floor and roof of the basement, as well as the deformation joints (such as temperature joints and settlement joints) to prevent groundwater infiltration.
2. Pools and tanks: At the joints of various industrial and civil water storage tanks, fire-fighting tanks, water treatment tanks, etc., to prevent water leakage.
3. Hydraulic engineering dams and channels: For the joint of the dam body and the concrete dam, as well as the interface sealing of irrigation channels and water transmission pipelines, to resist water pressure infiltration.
4. Bridges: At the expansion joints between bridge bearings and the beam body, as well as the waterstop at the connection between the bridge deck and the abutment, to prevent rainwater from seeping into the beam body or pier.
5. Tunnels and subways: Circumferential construction joints and longitudinal deformation joints of tunnels, joints of subway interval tunnels and station structures, to prevent groundwater or surface water from invading.
6. Underground pipe galleries: Joint seams and deformation joints of the comprehensive pipe gallery, to ensure the internal dryness of the pipe gallery and protect the pipeline equipment.
7. Sewage treatment plants: Joint waterproofing of facilities such as sedimentation tanks, aeration tanks, and sludge treatment tanks, to withstand corrosion from chemical substances in the sewage.
8. Civil defense projects: Sealing joints of air-raid shelters and underground bunkers, to meet the requirements of anti-seepage and protection.
9. Mining engineering: Sealing of expansion joints or construction joints of mine tunnels to prevent water leakage from the mine.
Firstly, to build a one-stop procurement platform for tunnel waterproofing materials and accessories. This platform integrates a full range of necessary products, allowing customers to complete all purchases in one place, greatly saving time and simplifying the procurement process.

Secondly, to provide professional tunnel waterproofing system solutions-we do not only supply products, but also combine our industry expertise to offer tailored solutions that address the specific waterproofing challenges of different tunnel projects.
A defining advantage of PENNFOX's products is their high customizability. We fully understand that every waterproofing project has unique requirements, which may stem from factors such as geological conditions of the tunnel site, project design standards, and specific functional needs of customers, therefore, we offer flexible customization services: based on customers' detailed requirements to develop and manufacture products that perfectly match their project demands, ensuring optimal waterproofing effects for each project.

In the future, PENNFOX Co., Ltd will strictly follow our slogan "Credit, Quality and Service create the bright future" and offer the best materials and service for customers.
