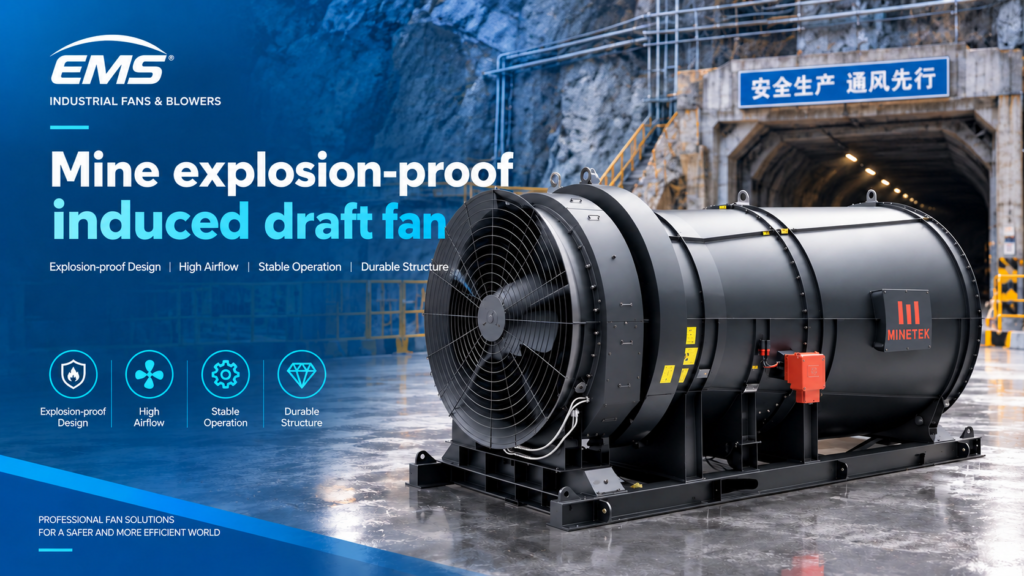

Mine explosion-proof induced draft fan

Product Overview
The Mine explosion-proof induced draft fan is designed for main ventilation and exhaust applications in coal mines and underground mining operations.
The fan uses an axial-flow impeller to move large volumes of air through mine ventilation systems. It can be equipped with a flameproof motor and customized according to required airflow, pressure, mine ventilation resistance, shaft dimensions, power supply and operating environment.
FBCZ fans are suitable for continuous-duty main ventilation systems, including mine return-air systems, main ventilation stations and underground mine exhaust applications.
Working Principle
The FBCZ fan operates on the axial-flow principle, with air moving through the fan along the axial direction.
Typical exhaust ventilation process:
Underground Mine → Return Airway → FBCZ Main Fan → Exhaust Outlet → Atmosphere
The rotating impeller generates axial airflow and draws return air from underground workings through the mine ventilation network.
The required fan duty point should be determined according to the mine ventilation resistance and required airflow.
Main Applications
The FBCZ Series can be used for:
Coal Mine Main Ventilation
Underground Mine Ventilation
Mine Exhaust Ventilation
Mine Return-Air Systems
Main Return Shafts
Mine Ventilation Stations
Deep Mine Ventilation
Underground Metal Mines
Non-Coal Underground Mines
Centralized Mine Ventilation Systems
Exhaust-Type Mine Ventilation
Long-Distance Mine Ventilation
